CaseIH Magnum 200 Specs ( 2014-2025 )

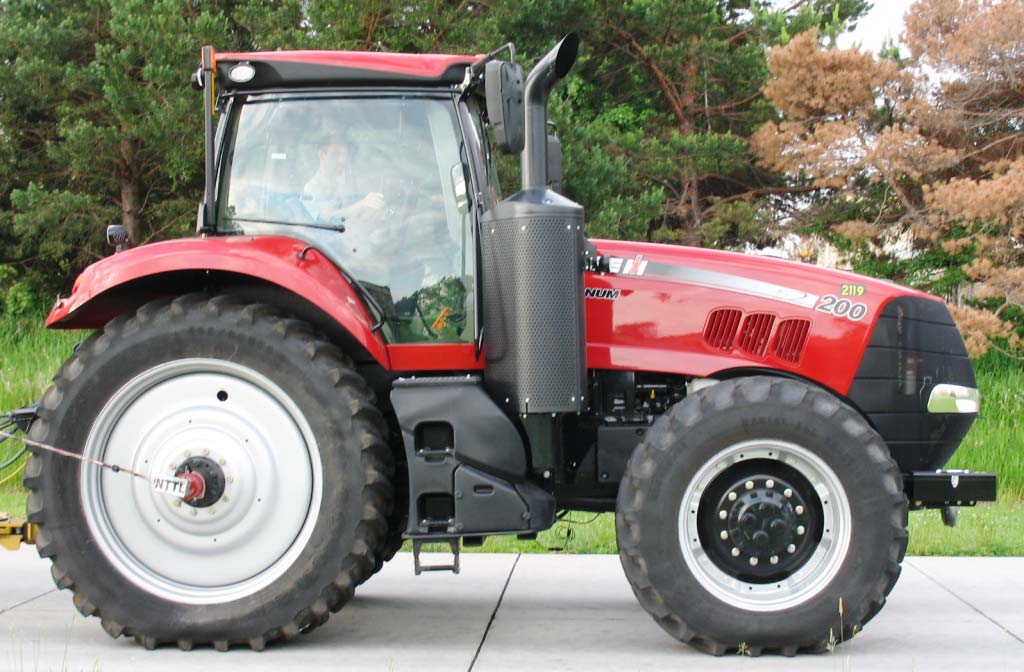

Name: CaseIH Magnum 200
Brand: CaseIH

Overview

The CaseIH Magnum 200 is a row-crop tractor produced in Racine, Wisconsin, between 2014 and 2025, powered by an FPT 6.7L 6-cylinder diesel engine. It features a Tier 4 emission system with selective catalytic reduction and was manufactured with either a 19-speed full power shift or a continuously variable transmission. The unit is built on a 118-inch wheelbase with a standard operating weight of 20,705 lbs.

Ideal Applications

Tested Power Output: According to Nebraska Tractor Test data, this model achieved a maximum tested PTO power of 192.65 hp and a maximum drawbar performance of 173.41 hp.

Hydraulic and Hitch Capacity: The tractor is equipped with a pressure flow compensating hydraulic system providing 41 gpm of flow and a Category III/IIIN rear hitch with a lift capacity of 14,100 lbs at 24 inches.

Transmission and Drive Configuration: This four-wheel drive tractor utilizes inboard planetary final drives and is listed with options for both 19-speed power shift and infinite-speed CVT transmissions.

Production

Description	Row-Crop tractor / Built in Racine, Wisconsin, USA
Manufacturer	CaseIH (a part of CNH)
Original price	$197,469 (2014 Power shift )

Engine

Engine type	FPT 6.7L 6-cyl diesel
Exhaust fluid (DEF)	17.5 gal (66.2 L)
Fuel tank	160 gal (605.6 L)
Bore/Stroke	4.095x5.20 inches (104 x 132 mm)
Cooling system	viscous fan
Description	FPT / wastegate turbocharged air-to-air intercooled diesel / 6-cylinder 24-valve / liquid-cooled
Displacement	410.6 ci (6.7 L)
Emission control	selective catalytic reduction (SCR)
Emissions	Tier 4
Fuel system	electronic high pressure common rail direct injection
Maximum Power (gross)	245 hp (182.7 kW)
Rated Power (gross)	200 hp (149.1 kW)
Rated RPM	2200
Starter	electric
Starter volts	12
Drawbar (tested)	155.25 hp (115.8 kW)
Engine (gross)	200 hp (149.1 kW)
Engine (max)	245 hp (182.7 kW)
PTO (claimed)	170 hp (126.8 kW)
PTO (tested)	192.65 hp (143.7 kW)

Transmission

Clutch	electro-hydraulic wet disc
Gears	19 forward and 6 reverse / infinite forward and reverse
Type	full power shift / continuously variable transmission (CVT)
Description	continuously variable transmission (CVT)
Transmission type	19-speed full power shift
Description	continuously variable transmission (CVT)
Transmission type	19-speed full power shift

Mechanical

Description	Power steering / Hydraulic wet disc brakes / Magnum cab standard with air-conditioning. Optional cab suspension.
Drive type	Four-wheel drive
Final drives	inboard planetary

Hydraulics

Pump flow	41 gpm (155.2 lpm)
Rear valves	3 to 5
Type	pressure flow compensating

Hitch

Control	electronic lower link draft sensing
Drawbar	Cat. 3
Rear lift (at 24"/610mm)	14100 lbs (6395 kg)
Rear Type	III/IIIN

PTO

Rear PTO	independent
Rear PTO Type	540/1000

Electrical

Battery volts	12
Charging system	alternator
Ground	negative

Dimensions & Tires

Ag front	380/85R34
Ag rear	480/80R46
Front axle	4WD / Suspended 4WD
Height (cab)	126.2 inches (320 cm)
Length	234 inches (594 cm)
Operating weight	20705 lbs (9391 kg)
Wheelbase	118 inches (299 cm)
Front tire	380/85R34
Rear tire	480/80R46
Weight	20705 lbs (9391 kg)
Wheelbase	118 inches (299 cm)

Magnum 200 Serial Number Location

Description	Serial number plate on the front right of the tractor frame, above the front axle.

OCED Tractor Test 2119

Description	Diesel 19-speed 4WDMay 20, 215 - June 8, 2015Link: OCED Tractor Test 2119 file / PTO performance / Drawbar performance / Gear 9 used for power test. / Gear 6 used for pull test.
Fuel use	9.7 gal/hour (36.7 l/hour) / 9.7 gal/hour (36.7 l/hour) / 9.8 gal/hour (37.1 l/hour) / 9.7 gal/hour (36.7 l/hour)
Max power	192.65 hp (143.7 kW) / 155.25 hp (115.8 kW)
Max pull	18674 lbs (8470 kg)
Power at rated engine speed	178.15 hp (132.8 kW)
Power at rated PTO speed	189.60 hp (141.4 kW)

References

Description	Magnum 180-380 Tractors published in 2014, by CaseIH / Magnum Series Tractors published in 2019, by CaseIH

Nebraska Tractor Test Results

Test #2119

Download PDF

Test Date: May 20 to June 8, 2015

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

192.65 hp

@ N/A rpm

Rated Engine Speed

178.15 hp

N/A lb/hp·hr

Standard PTO Speed

189.60 hp

@ N/A rpm PTO

Torque Statistics

Maximum Torque	641 lb-ft (870 Nm) at 1501 rpm
Torque Rise	0.44%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM	DEF gal/hr
Rated Engine Speed	178.15	132.84	2101	0.66
Maximum Power (1 Hour)	192.65	143.66	1751	0.73

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
178.15	2101	9.71	0.38	18.35	0.66
156.82	2171	8.80	0.39	17.83	0.58
118.32	2184	7.06	0.42	16.76	0.46
79.29	2198	5.35	0.47	14.81	0.35
40.02	2211	3.63	0.64	11.02	0.23
1.80	2222	2.27	8.84	0.79	0.17

Drawbar Performance At 1750 Engine RPM (Unballasted) Front Drive Engaged Maximum Power In Selected Gears

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	RPM	Slip	Air °F	Cool °F	Barometer Inch Hg	Def Consumption Lb Hp Hr	Fuel Consumption Hp Hr Gal	Fuel Consumption Lb Hp Hr
6th Gear	132.17	18,788	2.64	2115	13.50	70	186	28.87	0.04	14.04	0.50
7th Gear	149.90	17,221	3.27	2100	9.60	71	186	28.87	0.04	15.50	0.45
8th Gear	158.88	16,027	3.72	1972	7.80	73	187	28.85	0.04	16.12	0.44
9th Gear	164.41	14,757	4.18	1815	6.30	73	186	28.85	0.04	16.89	0.42
10th Gear	167.19	12,713	4.93	1750	4.30	69	185	28.87	0.04	17.28	0.41
11th Gear	170.01	10,760	5.93	1750	3.10	68	185	28.88	0.04	17.53	0.40
12th Gear	166.74	8,774	7.13	1750	2.40	68	185	28.87	0.04	17.37	0.40
13th Gear	173.41	7,682	8.47	1751	2.20	69	186	28.87	0.04	17.98	0.39

Unballasted Front Drive Engaged Fuel Consumption Characteristics

Click column headers to sort

Power	Pull (lbs)	Speed	RPM	Slip	Air °F	Cool °F	Barometer Inch Hg	Condition	Def Consumption Lb Hp Hr	Fuel Consumption Hp Hr Gal	Fuel Consumption Lb Hp Hr
155.25	11,681	4.98	2100	3.80	66	186	28.88	Maximum Power—9th Gear	0.04	16.05	0.44
119.96	8,788	5.12	2140	2.90	74	187	28.83	75% of Pull at Maximum Power—9th Gear	0.04	15.44	0.45
81.74	5,873	5.22	2160	1.90	75	186	28.83	50% of Pull at Maximum Power—9th Gear	0.04	13.54	0.52
119.54	8,807	5.09	1496	2.80	75	184	28.83	75% of Pull at Reduced Engine Speed—11th Gear	0.04	17.32	0.41
81.37	5,830	5.24	1523	1.70	74	184	28.83	50% of Pull at Reduced Engine Speed—11th Gear	0.04	15.77	0.44

Unballasted Front Drive Engaged Maximum Power In Selected Gears

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	RPM	Slip	Air °F	Cool °F	Barometer Inch Hg	Def Consumption Lb Hp Hr	Fuel Consumption Hp Hr Gal	Fuel Consumption Lb Hp Hr
6th Gear	131.29	18,674	2.64	2118	13.60	70	186	28.86	0.04	13.96	0.50
7th Gear	149.89	17,224	3.27	2100	9.90	71	186	28.87	0.04	15.44	0.45
8th Gear	154.22	14,281	4.05	2100	5.70	73	186	28.85	0.04	15.97	0.44
9th Gear	155.25	11,681	4.98	2100	3.80	66	186	28.88	0.04	16.05	0.44
10th Gear	155.18	9,700	6.00	2100	2.90	65	186	28.88	0.04	16.06	0.44
11th Gear	156.26	8,172	7.17	2100	2.20	67	185	28.88	0.04	16.20	0.43
12th Gear	152.36	6,639	8.61	2100	1.80	67	187	28.87	0.04	15.75	0.45

Category: III Quick Attach: Yes

Two Outlet Sets Combined

Sustained Pressure	2,852 psi
Delivery Pressure	2,530 psi
Flow Rate (min press)	38.20 gpm
Max Power	55.00 hp

Single Outlet Set

Sustained Pressure	2,836 psi
Delivery Pressure	2,212 psi
Flow Rate (min press)	37.90 gpm
Max Power	45.00 hp

Hitch Dimensions (No Load)

Dimension	Inches	mm
a	26.80	680
b	17.90	454
c	15.10	383
d	14.60	372
e	10.90	277
f	10.60	270
g	36.40	925
h	2.80	71
i	19.70	500
j	25.80	655
k	26.90	682
l	48.10	1223
m	22.40	570
n	38.30	974
o	9.10	230
p	52.60	1335
q	37.70	957
r	37.70	957

Engine

Make	F.P.T. Diesel
Type	six cylinder vertical with turbocharger, air to air intercooler and D.E.F. (diesel exhaust fluid) exhaust treatment
Displacement	410 cu in (6728 ml)
Compression Ratio	17.5 to 1
Rated Engine Speed	2100 rpm
Air Cleaner	two paper elements and aspirator
Exhaust	DOC (diesel oxidation catalyst) and SCR (selective catalyst reduction) integrated within a vertical muffler
Crankshaft	lengthwise

Chassis

Type	front wheel assist
Steering	hydrostatic
Transmission	selective gear fixed ratio with full range operator controlled powershift
Speeds	19 forward (26.10 mph max)
Wheelbase	118.30 in (3005 mm)
Brakes	wet disc hydraulically operated by two foot pedals that can be locked together
Hydraulic Control	direct engine drive
Unladen Tractor Mass	20,705 lbs ( 9,392 kg )

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution
Engine Oil	SAE 10W40 API service classification CJ-4

Sound Levels

Bystander	81.60 dB(A)
At No Load In 9th Gear Fwd Disengaged	64.60 dB(A)
At No Load In 9th Gear Fwd Engaged	64.50 dB(A)

Tires & Tracks

Rear Tires	Two 480/80R50;***;18(125)
Front Tires	Two 420/85R34;***;18(125)
Height of Drawbar	21.00 in (535 mm)
Ballast	Tested without ballast

Static Weight

Rear	12,140 lbs
Front	8,740 lbs
Total	20,880 lbs
