CaseIH Magnum 180 Specs ( 2009-2025 )

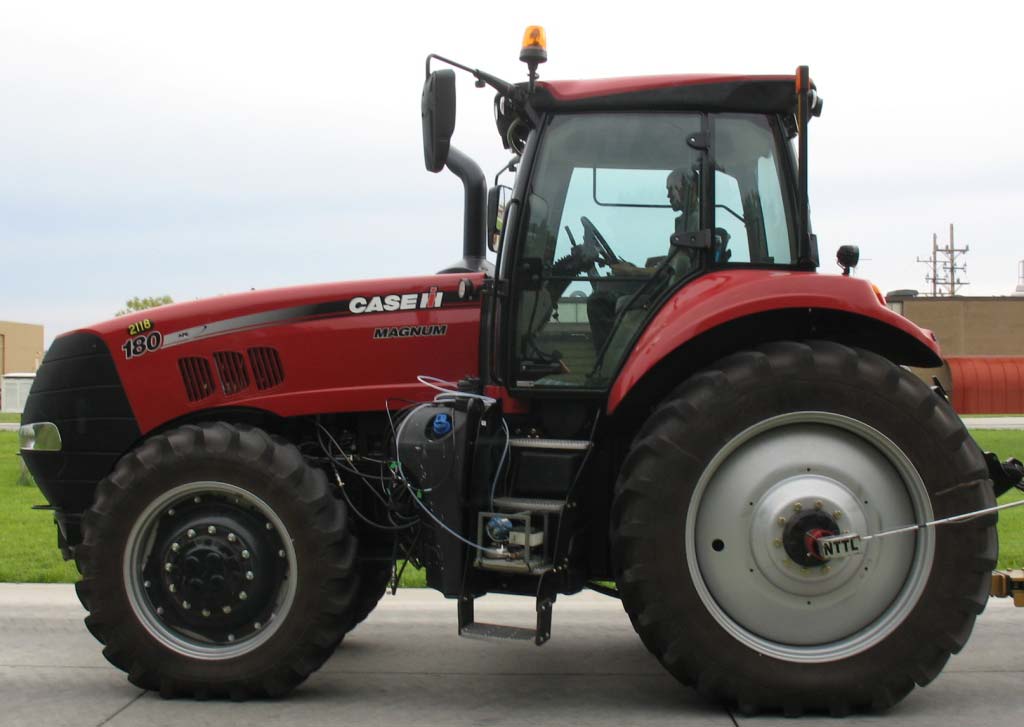

Name: CaseIH Magnum 180
Brand: CaseIH

Compare Tractor

Nebraska Test #2118

CASE IH MAGNUM 180

Max Drawbar HP 158.8 hp

Max Pull 18,516 lbs

Max Torque 559 lb-ft

View Full Test Data →

Overview

The CaseIH Magnum 180 is a row-crop farm tractor manufactured in Racine, Wisconsin, featuring an FPT 6.7L 6-cylinder turbocharged diesel engine. Produced between 2009 and 2025, it is equipped with a four-wheel drive system and offers transmission options including full power shift and continuously variable transmission.

Ideal Applications

Tested Power and Pulling Capacity: Nebraska Tractor Test data recorded a maximum PTO performance of 178.6 hp and a maximum drawbar pull of 18,516 lbs.

Hydraulic and Hitch Specifications: The tractor features a Pressure Flow Compensated hydraulic system with a total flow of 39.6 gpm and a rear lift capacity rated at 12,787 lbs.

Engine and Emissions Configuration: The liquid-cooled FPT engine utilizes an electronic high-pressure common rail fuel system and is listed with Tier 3 emissions compliance.

Production

Description	Row-Crop tractor / Built in Racine, Wisconsin, USA
Manufacturer	CaseIH

Engine

Engine type	FPT 6.7L 6-cyl diesel
Bore/Stroke	4.094x5.197 inches (104 x 132 mm)
Compression	16.5:1
Cooling system	viscous fan
Description	FPT / turbocharged intercooled diesel / 6-cylinder 24-valve / liquid-cooled
Displacement	410.6 ci (6.7 L)
Emissions	Tier 3
Fuel system	electronic high-pressure common rail
Maximum Power	234 hp (174.5 kW)
Oil capacity	17 qts (16.1 L)
Power	180 hp (134.2 kW)
Rated RPM	2200
Starter	electric
Starter volts	12
Drawbar (tested)	132.7 hp (99.0 kW)
PTO (claimed)	150 hp (111.9 kW)
PTO (tested)	179.8 hp (134.1 kW)

Transmission

Gears	18 forward and 6 reverse / 19 forward and 6 reverse / ininite forward and infinite (2-range) reverse (4-range)
Type	full power shift / full power shift / continuously variable transmission (CVT)
Description	continuously variable transmission (CVT)
Transmission type	18-speed full power shift / 19-speed full power shift
Description	continuously variable transmission (CVT)
Transmission type	18-speed full power shift / 19-speed full power shift

Mechanical

Description	Differential hydraulic wet disc brakes / Surveyor cab standard with air-conditioning.
Drive type	Four-wheel drive
Steering	hydrostatic power

Capacity

Fuel	118 gal (446.6 L)
Hydraulic system	26.5 gal (100.3 L)

Hydraulics

Capacity	26.5 gal (100.3 L)
Total flow	39.6 gpm (149.9 lpm)
Type	Pressue Flow Compensated (PFC)
Valves	3 to 5

Hitch

Rear lift	12,787 lbs (5800 kg)
Rear Type	II/III

PTO

Rear PTO	independent
Rear PTO Type	540/1000 (1.375)

Electrical

Charging amps	150
Charging system	alternator
Ground	negative

Dimensions & Tires

Height (cab)	128.5 inches (326 cm)
Rear axle	4.125 by 112 inches (104 by 2844 mm) / 4.125 by 119 inches (optional) (104 by 3022 mm)
Shipping weight	19,000 lbs (8618 kg)
Wheelbase	118.3 inches (300 cm)
Weight	19,000 lbs (8618 kg)
Wheelbase	118.3 inches (300 cm)

CaseIH Magnum 180 attachments

Description	front-end loader

OCED Tractor Test 2423

Description	Diesel 19-speed 4WDJune 2007 - September 2007, Link: OCED Tractor Test 2423 file / PTO performance / Drawbar performance / Gear 8 used for power test. / Gear 6 used for pull test.
Fuel use	10.0 gal/hour (37.9 l/hour) / 9.8 gal/hour (37.1 l/hour) / 9.8 gal/hour (37.1 l/hour) / 9.9 gal/hour (37.5 l/hour)
Max power	179.8 hp (134.1 kW) / 132.7 hp (99.0 kW)
Max pull	16,805 lbs (7622 kg)
Power at rated engine speed	158.6 hp (118.3 kW)
Power at rated PTO speed	164.4 hp (122.6 kW)

References

Description	Magnum 180-210 Series Tractors published in 2009, by CaseIH / Magnum Series Tractors published in 2011, by CaseIH / Magnum Series Tractors New 2011 Preview published in 2010, by CaseIH

Nebraska Tractor Test Results

Test #2118

Download PDF

Test Date: May 13 to June 8, 2015

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln, Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

178.60 hp

@ 1800 rpm

Rated Engine Speed

160.27 hp

N/A lb/hp·hr

Standard PTO Speed

175.16 hp

@ N/A rpm PTO

Torque Statistics

Maximum Torque	559 lb.-ft. (758 Nm) at 1501 rpm
Torque Rise	39.6%

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM	DEF gal/hr	DEF L/hr
Rated Engine Speed	160.27	119.52	2101	0.60	2.29
Standard PTO Speed (1000 rpm)	175.16	130.62	1893	0.65	2.48
Maximum Power (1 Hour)	178.60	133.18	1800	0.68	2.56

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
160.27	2101	8.82	0.39	18.17	0.60
140.18	2159	7.97	0.40	17.59	0.52
105.69	2175	6.43	0.43	16.45	0.41
71.01	2188	4.87	0.48	14.59	0.32
35.70	2201	3.42	0.67	10.43	0.22
2.20	2212	2.25	7.18	0.98	0.17

Fuel Consumption Characteristics

Click column headers to sort

Condition	Power	Pull (lbs)	Speed	Slip	DEF lb/hp	Air °F	Cool °F
Maximum Power - 9th Gear	139.56	11,134	4.70	3.50	0.04	52	187
75% of Pull at Maximum Power - 9th Gear	107.17	8,336	4.82	2.10	0.03	54	186
50% of Pull at Maximum Power - 9th Gear	73.32	5,576	4.93	0.90	0.04	54	186
75% of Pull at Reduced Engine Speed - 11...	107.15	8,422	4.77	2.00	0.04	55	184
50% of Pull at Reduced Engine Speed - 11...	73.37	5,598	4.92	0.90	0.05	55	184

Unballasted Front Drive Engaged Maximum Power At 1800 Engine RPM

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	RPM	Slip	Air °F	Cool °F	Barometer Inch Hg	Def Consumption Lb Hp Hr	Fuel Consumption Hp Hr Gal	Fuel Consumption Lb Hp Hr
6th Gear	121.92	18,516	2.47	2102	13.40	50	187	28.99	0.05	13.79	0.51
7th Gear	140.34	17,294	3.05	2053	8.20	51	187	28.99	0.04	15.56	0.45
8th Gear	150.08	16,109	3.50	1947	6.80	51	186	29.02	0.04	16.23	0.43
9th Gear	154.68	14,739	3.94	1800	5.50	52	186	29.03	0.04	16.91	0.41
10th Gear	154.33	12,095	4.79	1800	4.10	53	186	29.03	0.04	16.83	0.42
11th Gear	156.84	10,230	5.75	1800	2.90	53	186	29.03	0.04	17.18	0.41
12th Gear	154.53	8,367	6.93	1799	2.00	53	186	29.05	0.04	16.99	0.41
13th Gear	158.75	7,225	8.24	1801	1.60	54	185	29.04	0.04	17.42	0.40

Unballasted Front Drive Engaged Maximum Power In Selected Gears

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	RPM	Slip	Air °F	Cool °F	Barometer Inch Hg	Def Consumption Lb Hp Hr	Fuel Consumption Hp Hr Gal	Fuel Consumption Lb Hp Hr
6th Gear	121.67	18,496	2.47	2102	13.40	50	187	28.99	0.05	13.81	0.51
7th Gear	137.50	16,369	3.15	2100	7.40	50	187	29.01	0.04	15.52	0.45
8th Gear	139.90	13,621	3.85	2100	4.70	52	187	29.02	0.04	15.76	0.45
9th Gear	139.56	11,134	4.70	2100	3.50	52	187	29.03	0.04	15.81	0.44
10th Gear	139.18	9,219	5.66	2100	2.50	54	187	29.04	0.04	15.72	0.45
11th Gear	139.48	7,716	6.78	2100	1.80	54	187	29.04	0.04	15.75	0.45
12th Gear	135.68	6,241	8.15	2100	1.20	53	187	29.04	0.04	15.36	0.46

Category: III Quick Attach: Yes

Two Outlet Sets Combined

Sustained Pressure	2,892 psi
Delivery Pressure	2,543 psi
Flow Rate (min press)	38.20 gpm
Max Power	53.00 hp

Single Outlet Set

Sustained Pressure	2,857 psi
Delivery Pressure	2,163 psi
Flow Rate (min press)	36.60 gpm
Max Power	40.40 hp

Engine

Make	F.P.T. Diesel
Type	six cylinder vertical with turbocharger, air to air intercooler and D.E.F. (diesel exhaust fluid) exhaust treatment
Displacement	410 cu in (6728 ml)
Compression Ratio	17.5 to 1
Rated Engine Speed	2100 rpm
Air Cleaner	two paper elements and aspirator
Exhaust	DOC (diesel oxidation catalyst) and SCR (selective catalyst reduction) integrated within a vertical muffler
Crankshaft	lengthwise

Chassis

Type	front wheel assist
Steering	hydrostatic
Transmission	selective gear fixed ratio with full range operator controlled powershift
Speeds	19 forward (26.10 mph max)
Wheelbase	118.30 in (3005 mm)
Front Tread Width	60.0 to 88.0 in
Rear Tread Width	64.0 to 129.0 in
Brakes	wet disc hydraulically operated by two foot pedals that can be locked together
Hydraulic Control	direct engine drive
Unladen Tractor Mass	19,935 lbs ( 9,042 kg )

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution

Sound Levels

Bystander	81.40 dB(A)
At No Load 9th Gear Disengaged	63.20 dB(A)
At No Load 9th Gear Engaged	63.20 dB(A)

Tires & Tracks

Rear Tires	Two 480/80R46;***;17(115)
Front Tires	Two 380/85R34;***;18(125)
Height of Drawbar	19.5 in (495 mm)

Static Weight

Rear	11,730 lbs
Front	8,380 lbs
Total	20,110 lbs
