Overview

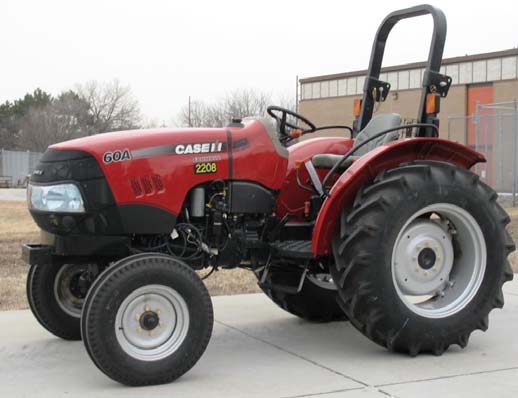

The CaseIH Farmall 60A is a utility tractor manufactured in India that has been in production since 2015. It is equipped with a 2.2L three-cylinder FPT turbocharged diesel engine and an 8-speed mechanical shuttle transmission. The tractor is available in 2WD and 4WD configurations with a rear Category II hitch and an open center hydraulic system.
Ideal Applications
Transmission and Clutch:
The drivetrain features an 8-speed mechanical shuttle transmission with a 279mm dry disc clutch and planetary final drives.
Tested PTO Performance:
According to Nebraska Tractor Test 2208, the 2WD model achieved a maximum PTO power of 59.54 hp with a peak fuel consumption rate of 4.4 gallons per hour.
Hitch and Hydraulic Flow:
The open center hydraulic system provides a pump flow of 11.9 gpm and supports a rear Category II hitch with a lift capacity of 2,701 lbs at 24 inches.
Production
| Description | Utility tractor / Built in India |
|---|---|
| Manufacturer | CaseIH |
Engine
| Engine type | FPT 2.2L 3-cyl diesel |
|---|---|
| Fuel tank | 13 gal (49.2 L) |
| Air cleaner | dry |
| Bore/Stroke | 3.70x4.21 inches (94 x 107 mm) |
| Description | FPT / turbocharged aftercooled diesel / 3-cylinder 6-valve / liquid-cooled |
| Displacement | 135.9 ci (2.2 L) |
| Emissions | Tier IV |
| Fuel system | electronic high-pressure common rail |
| Power (gross) | 60 hp (44.7 kW) |
| Pre-heating | glow plugs |
| Rated RPM | 2600 |
| Starter | electric |
| Starter volts | 12 |
| Engine (gross) | 60 hp (44.7 kW) |
| PTO (claimed) | 51 hp (38.0 kW) |
| PTO (tested) | 59.54 hp (44.4 kW) |
Transmission
| Clutch | 279mm mechanical dry disc |
|---|---|
| Description | Four gears in two ranges with shuttle. |
| Gears | 8 forward and reverse |
| Transmission type | 8-speed mechanical shuttle |
| Type | mechanical shuttle |
Mechanical
| Description | Power steering / Wet disc brakes / Two-post folding ROPS. |
|---|---|
| Differential lock | mechanical rear |
| Drive type | Two- or four-wheel drive |
| Final drives | planetary |
Hydraulics
| Mid valves | 0 or 2 |
|---|---|
| Pump flow | 11.9 gpm (45.0 lpm) |
| Rear valves | 1 or 2 |
| Steering flow | 5.5 gpm (20.8 lpm) |
| Type | open center |
Hitch
| Rear lift (at 24"/610mm) | 2701 lbs (1225 kg) |
|---|---|
| Rear Type | II |
PTO
| Engine RPM | 540@2575 |
|---|---|
| Rear PTO | independent |
| Rear PTO Type | 540 (1.375) |
Electrical
| Battery volts | 12 |
|---|---|
| Charging amps | 75 |
| Charging system | alternator |
| Ground | negative |
Dimensions & Tires
| 2WD Standard tires (ag) | Front: 7.5x16. Rear: 13.6x28 |
|---|---|
| Industrial front | 12.5x18 |
| Industrial rear | 18.4x24 |
| 2WD Front tread | 56 to 77.6 inches (142 to 197 cm) |
| 2WD Height | 92.7 inches (235 cm) |
| 2WD Length | 129.5 inches (328 cm) |
| 2WD Weight | 4442 lbs (2014 kg) |
| 2WD Wheelbase | 96.4 inches (244 cm) |
| 4WD Front tread | 61.3 to 69.2 inches (155 to 175 cm) |
| 4WD Height | 97.4 inches (247 cm) |
| 4WD Length | 134 inches (340 cm) |
| 4WD Weight | 5060 lbs (2295 kg) |
| 4WD Wheelbase | 97.6 inches (247 cm) |
| Flange rear axle | 53.9 inch length (1369 mm) |
| Rear tread | 52.6 to 68.4 inches (133 to 173 cm) |
| Width | 67.5 inches (171 cm) |
| 2WD Rear tire | 13.6x28 |
| 2WD Wheelbase | 96.4 inches (244 cm) |
| 4WD Wheelbase | 97.6 inches (247 cm) |
| Front tire | 7.5x16 |
| Weight | 4442 to 5060 pounds |
CaseIH Farmall 60A attachments
| Description | front-end loader |
|---|
Nebraska Tractor Test 2199
| Description | Diesel 8-speed 4WDAugust 29 - 29, 2018Link: Nebraska Tractor Test 2199 file / PTO performance |
|---|---|
| Fuel use | 3.3 gal/hour (12.5 l/hour) / 3.9 gal/hour (14.8 l/hour) / 3.9 gal/hour (14.8 l/hour) |
| Max power | 48.72 hp (36.3 kW) |
| Power at rated engine speed | 46.76 hp (34.9 kW) |
| Power at rated PTO speed | 47.91 hp (35.7 kW) |
Nebraska Tractor Test 2208
| Description | Diesel 8-speed 2WDJanuary 15 - 17, 2019Link: Nebraska Tractor Test 2208 file / PTO performance |
|---|---|
| Fuel use | 3.9 gal/hour (14.8 l/hour) / 4.4 gal/hour (16.7 l/hour) / 4.3 gal/hour (16.3 l/hour) |
| Max power | 59.54 hp (44.4 kW) |
| Power at rated engine speed | 58.48 hp (43.6 kW) |
| Power at rated PTO speed | 57.99 hp (43.2 kW) |
References
| Description | Utility Farmall A Series Tractors published in 2016, by CaseIH* / Utility Farmall A Series Tractors published in 2017, by CaseIH / Farmall Utility Series Tractors published in 2021, by CaseIH / Farmall Utility Series Tractors published in 2022, by CaseIH / *Publication contains known errors. |
|---|
Speeds
| Description | Reverse speeds are about 5% faster than forward. |
|---|
Tractor Tests
| Description | NTTL 2199: diesel 8-speed 4WD / NTTL 2208: diesel 8-speed 2WD |
|---|
Nebraska Tractor Test Results
Test #2208
Test Date:
January 15-17, 2019
Location:
Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln Nebraska 68583-0832
This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.
Maximum Power & Fuel Consumption
Max Power (1 Hour)
59.54 hp
@ 2251 rpm
Rated Engine Speed
58.48 hp
N/A lb/hp·hr
Standard PTO Speed
57.99 hp
@ N/A rpm PTO
Torque Statistics
| Maximum Torque | 159 lb.-ft. (216 Nm) at 1797 rpm |
|---|---|
| Torque Rise | 34.6% |
PTO Power Curve
Maximum Power & Fuel Consumption Details
| Condition | HP | kW | RPM | Fuel gal/hr | Fuel L/hr |
|---|---|---|---|---|---|
| Rated Engine Speed | 58.48 | 43.61 | 2599 | 4.45 | 16.83 |
| Maximum Power (1 Hour) | 59.54 | 44.40 | 2251 | 3.94 | 14.93 |
Varying Power & Fuel Consumption
Click column headers to sort
| Power | RPM | gal/hr | lb/hp·hr | hp·hr/gal | DEF gal/hr |
|---|---|---|---|---|---|
| 58.48 | 2599 | 4.45 | 0.53 | 13.15 | N/A |
| 50.72 | 2652 | 4.10 | 0.56 | 12.38 | N/A |
| 38.30 | 2671 | 3.34 | 0.61 | 11.45 | N/A |
| 25.83 | 2703 | 2.37 | 0.64 | 10.92 | N/A |
| 12.96 | 2714 | 1.70 | 0.92 | 7.63 | N/A |
| 1.29 | 2731 | 1.21 | 6.53 | 1.07 | N/A |
