Overview

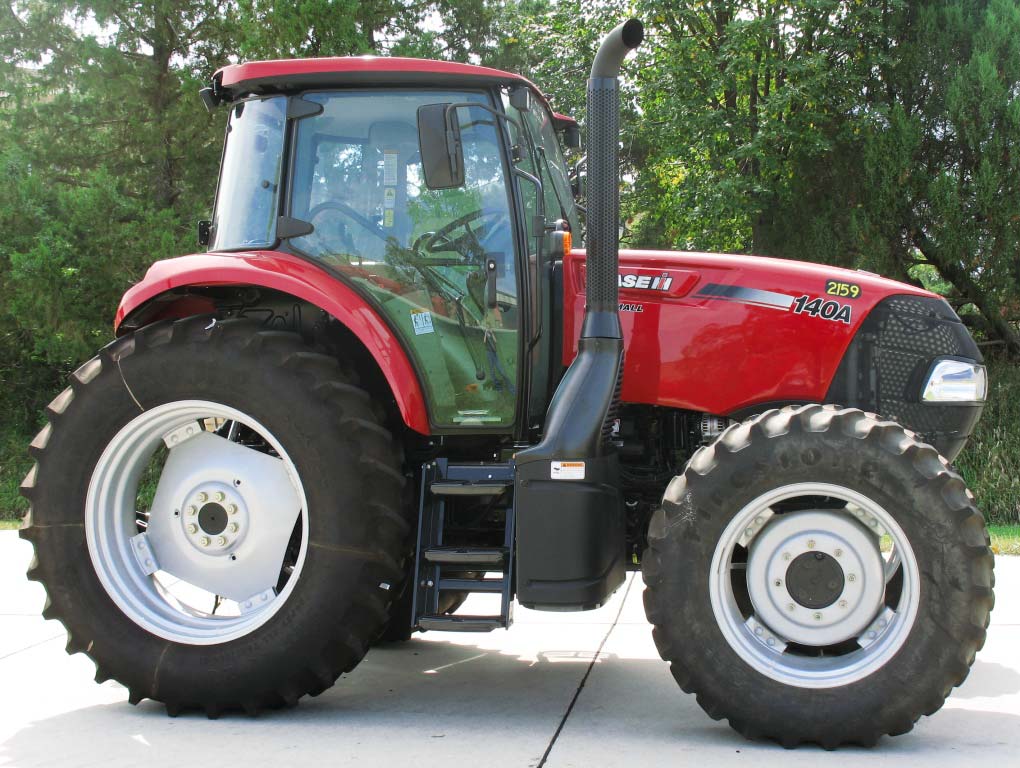

The CaseIH Farmall 140A is a utility tractor produced from 2012 to 2025, featuring an FPT 6.7L 6-cylinder turbocharged diesel engine rated at 140 gross horsepower. The tractor is available in 2WD or 4WD configurations with either a cab or a two-post foldable ROPS and offers multiple transmission options including 8-speed and 16-speed shuttle variants.
Ideal Applications
Tested PTO and Drawbar Performance:
According to Nebraska Tractor Test data, the tractor achieved a maximum tested PTO output of 122.93 hp and a maximum drawbar pull of 9,141 lbs.
Hydraulic and Hitch Capacity:
The unit is equipped with an open-center hydraulic system providing a total flow of 31 gpm and a rear Type II hitch with a lift capacity of 7,200 lbs at 24 inches.
Mechanical and Transmission Configuration:
The machine features a 104-inch to 105-inch wheelbase and can be equipped with 8-speed synchronized shuttle, 8-speed power shuttle, or 16-speed power shuttle transmissions.
Production
| Description | Utility tractor |
|---|---|
| Manufacturer | CaseIH |
Engine
| Engine type | FPT 6.7L 6-cyl diesel |
|---|---|
| Bore/Stroke | 4.094x5.197 inches (104 x 132 mm) |
| Compression | 17.5:1 |
| Description | FPT / turbocharged diesel / 6-cylinder 12-valve / liquid-cooled |
| Displacement | 411 ci (6.7 L) |
| Emissions | Tier III |
| Fuel system | mechanical injection |
| Oil capacity | 14.8 qts (14.0 L) |
| Power (gross) | 140 hp (104.4 kW) |
| Rated RPM | 2200 |
| Starter | electric |
| Starter volts | 12 |
| Drawbar (tested) | 103.64 hp (77.3 kW) |
| Engine (gross) | 140 hp (104.4 kW) |
| PTO (claimed) | 115 hp (85.8 kW) |
| PTO (tested) | 126.47 hp (94.3 kW) |
Transmission
| Description | Adds under-drive to power shuttle transmission. |
|---|---|
| Gears | 8 forward and reverse / 8 forward and reverse / 16 forward and 8 reverse |
| Transmission | Hi-Lo |
| Type | power shuttle / synchronized shuttle / power shuttle |
| Transmission type | 8-speed power shuttle / 8-speed synchronized shuttle / 16-speed power shuttle |
| Transmission type | 8-speed power shuttle / 8-speed synchronized shuttle / 16-speed power shuttle |
Mechanical
| Cab | Two-post foldable ROPS. Cab optional with air-conditioning. |
|---|---|
| Description | Power steering / Wet disc brakes |
| Drive type | Two- or four-wheel drive |
Capacity
| Fuel | 62 gal (234.7 L) |
|---|---|
| Hydraulic system | 16.4 gal (62.1 L) |
Hydraulics
| Capacity | 16.4 gal (62.1 L) |
|---|---|
| Pump flow | 22 gpm (83.3 lpm) |
| Steering flow | 9 gpm (34.1 lpm) |
| Total flow | 31 gpm (117.3 lpm) |
| Type | open center |
| Valves | 2 to 4 |
Hitch
| Rear lift (at 24"/610mm) | 7200 lbs (3265 kg) |
|---|---|
| Rear Type | II |
PTO
| Rear PTO | independent |
|---|---|
| Rear PTO Type | 540/1000 |
Electrical
| Battery CCA | 950 |
|---|---|
| Battery volts | 12 |
| Charging amps | 120 |
| Charging system | alternator |
| Ground | negative |
Dimensions & Tires
| 2WD Wheelbase | 105 inches (266 cm) |
|---|---|
| 4WD Wheelbase | 104 inches (264 cm) |
| Bar rear axle | 3.1 by 98 inches (78 by 2489 mm) |
| Description | Flange rear axle |
| 2WD Wheelbase | 105 inches (266 cm) |
| 4WD Wheelbase | 104 inches (264 cm) |
| Weight | 9061 to 10406 pounds |
CaseIH Farmall 140A Weight
| 2WD Cab | 9766 lbs (4429 kg) |
|---|---|
| 2WD ROPS | 9061 lbs (4110 kg) |
| 4WD Cab | 10406 lbs (4720 kg) |
| 4WD ROPS | 9700 lbs (4399 kg) |
CaseIH Farmall 140A attachments
| Description | front-end loader |
|---|
OCED Tractor Test 2050A
| Description | Diesel 8-speed 4WDNovember 27 - December 6, 2012Link: OCED Tractor Test 2050A file / PTO performance / Drawbar performance |
|---|---|
| Fuel use | 7.6 gal/hour (28.8 l/hour) / 8.5 gal/hour (32.2 l/hour) / 8.2 gal/hour (31.0 l/hour) / 8.6 gal/hour (32.6 l/hour) |
| Max power | 126.47 hp (94.3 kW) / 103.64 hp (77.3 kW) |
| Max pull | 9034 lbs (4097 kg) |
| Power at rated engine speed | 116.24 hp (86.7 kW) |
| Power at rated PTO speed | 120.22 hp (89.6 kW) |
References
| Description | Farmall 100A Series Tractors published in 2012, by CaseIH / Farmall 100A Series Tractors published in 2013, by CaseIH |
|---|
Speeds
| Description | With 18.4-34 rear tires. Reverse speeds are 3% faster than forward speeds. |
|---|
Nebraska Tractor Test Results
Test #2159A
Test Date:
August 31to September 7, 2016
Location:
Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln Nebraska 68583-0832
This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.
Maximum Power & Fuel Consumption
Max Power (1 Hour)
122.93 hp
@ 1890 rpm
Rated Engine Speed
118.06 hp
N/A lb/hp·hr
Standard PTO Speed
122.93 hp
@ N/A rpm PTO
Torque Statistics
| Maximum Torque | N/A |
|---|---|
| Torque Rise | 48.6% |
| At Engine RPM | 1502 rpm |
PTO Power Curve
Maximum Power & Fuel Consumption Details
| Condition | HP | kW | RPM |
|---|---|---|---|
| Rated Engine Speed | 118.06 | 88.04 | 2201 |
| Standard PTO Speed (1000 rpm) | 122.93 | 91.67 | 1890 |
| Maximum Power | 122.93 | 91.67 | 1890 |
Varying Power & Fuel Consumption
Click column headers to sort
| Power | RPM | gal/hr | lb/hp·hr | hp·hr/gal | DEF gal/hr |
|---|---|---|---|---|---|
| 118.06 | 2201 | 7.22 | 0.43 | 16.36 | 0.49 |
| 102.11 | 2241 | 6.50 | 0.45 | 15.70 | 0.43 |
| 77.50 | 2268 | 5.39 | 0.49 | 14.39 | 0.36 |
| 52.41 | 2297 | 4.34 | 0.58 | 12.09 | 0.24 |
| 26.51 | 2325 | 3.27 | 0.86 | 8.11 | 0.15 |
| 0.96 | 2349 | 2.30 | 16.86 | 0.42 | 0 |
