CaseIH Farmall 130A Specs ( 2015-Present )

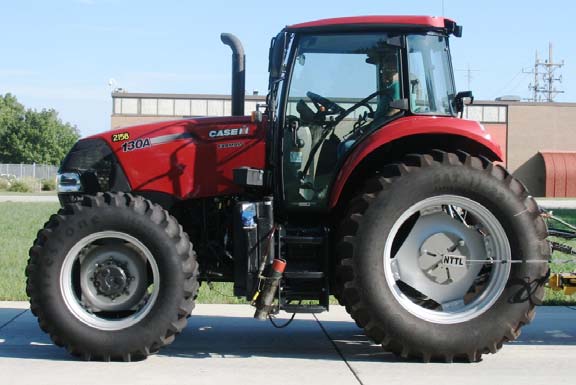

Name: CaseIH Farmall 130A
Brand: CaseIH

Overview

The CaseIH Farmall 130A is a utility farm tractor produced since 2015, featuring a 4.5L 4-cylinder FPT turbocharged intercooled diesel engine rated at 130 hp. It is available in 2WD and 4WD configurations with either a cab or two-post ROPS, and it utilized an 8-speed or 16-speed transmission system during its production run.

Ideal Applications

Tested Drawbar and PTO Performance: In Nebraska and OCED testing, the model achieved a maximum drawbar power of 100.21 hp and a maximum PTO power of 117.69 hp while consuming up to 6.9 gallons of fuel per hour.

Chassis and Weight Configuration: The tractor's operating weight ranges from 9,660 lbs for the 2WD ROPS model to 10,605 lbs for the 4WD cab version, with a maximum ballasted weight of 12,700 lbs.

Hydraulic and Hitch Specifications: Equipped with an open-center hydraulic system providing 22 gpm pump flow, the tractor features a Category II rear hitch with a 7,200 lb lift capacity at 24 inches.

Production

Description	Utility tractor
Manufacturer	CaseIH
Original price	$68,708 (2015 ROPS 2WD )

Engine

Engine type	FPT 4.5L 4-cyl diesel
Exhaust fluid (DEF)	7.9 gal (29.9 L)
Fuel tank	56.8 gal (215.0 L)
Bore/Stroke	4.094x5.197 inches (104 x 132 mm)
Description	FPT / turbocharged intercooled diesel / 4-cylinder 8-valve / liquid-cooled
Displacement	273.7 ci (4.5 L)
Emission control	selective catalytic reduction
Emissions	Tier IV
Oil capacity	10.6 qts (10.0 L)
Power	130 hp (96.9 kW)
Starter	electric
Starter volts	12
Drawbar (tested)	94.17 hp (70.2 kW)
PTO (claimed)	105 hp (78.3 kW)
PTO (tested)	117.69 hp (87.8 kW)

Transmission

Gears	8 forward and reverse / 8 forward and reverse / 16 forward and 8 reverse
Transmission	Hi-Lo
Type	power shuttle / mechanical shuttle / power shuttle
Transmission type	8-speed power shuttle / 8-speed mechanical shuttle / 16-speed power shuttle
Transmission type	8-speed power shuttle / 8-speed mechanical shuttle / 16-speed power shuttle

Mechanical

Cab	Two-post ROPS. Cab available with air-conditioning.
Drive type	Two- or four-wheel drive

Hydraulics

Pump flow	22 gpm (83.3 lpm)
Type	open center with closed-center load-sensing remotes
Valves	2 to 4

Hitch

Control	draft sensing
Rear lift (at 24"/610mm)	7200 lbs (3265 kg)
Rear Type	II

Electrical

Battery volts	12
Charging amps	120
Charging system	alternator
Ground	negative

Dimensions & Tires

2WD Standard tires (ag)	Front: 10.00-16. Rear: 18.4x34
4WD Standard tires (ag)	Front: 14.9x24. Rear: 18.4x34
2WD Wheelbase	95.7 inches (243 cm)
4WD Wheelbase	104 inches (264 cm)
Bar rear axle	3.071 by 98 inches (78 by 2489 mm)
Description	Flange rear axle
Height (cab)	110 inches (279 cm)
Height (ROPS)	117.3 inches (297 cm)
Width	74.5 inches*Width at fenders (189 cm)
2WD Rear tire	18.4x34
2WD Wheelbase	95.7 inches (243 cm)
4WD Wheelbase	104 inches (264 cm)
Front tire	10.00-16
Weight	9660 to 10605 pounds

CaseIH Farmall 130A Weight

2WD Cab	10040 lbs (4554 kg)
2WD ROPS	9660 lbs (4381 kg)
4WD Cab	10605 lbs (4810 kg)
4WD ROPS	10225 lbs (4638 kg)
Ballasted	12700 lbs (5760 kg)

OCED Tractor Test 2158

Description	Diesel 16-speed 4WDSeptember 2 - October 3, 2016Link: OCED Tractor Test 2158 file / PTO performance / Drawbar performance
Fuel use	6.7 gal/hour (25.4 l/hour) / 6.9 gal/hour (26.1 l/hour) / 6.4 gal/hour (24.2 l/hour) / 6.9 gal/hour (26.1 l/hour)
Max power	117.69 hp (87.8 kW) / 94.17 hp (70.2 kW)
Max pull	8790 lbs (3987 kg)
Power at rated engine speed	115.68 hp (86.3 kW)
Power at rated PTO speed	115.25 hp (85.9 kW)

References

Description	Farmall 110A-140A Tier 4B/Final Tractor Specifications published in 2015, by CaseIH / Farmall Utility Series Tractors published in 2021, by CaseIH

Speeds

Description	With 18.4-34 rear tires. Reverse speeds are 3% faster than forward speeds.

Nebraska Tractor Test Results

Test #2158

Download PDF

Test Date: September 2 to October 3, 2016

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

117.69 hp

@ 2051 rpm

Rated Engine Speed

115.68 hp

N/A lb/hp·hr

Standard PTO Speed

115.25 hp

@ 540 rpm PTO

Torque Statistics

Maximum Torque	396 lb-ft (537 Nm)
Torque Rise	43.5%
At Engine RPM	1302 rpm

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM	PTO RPM	Fuel gal/hr	DEF gal/hr
Rated Engine Speed	115.68	86.26	2202	630	6.90	0.47
Standard PTO Speed (1000 rpm)	115.25	85.94	1890	540	6.36	0.39
Maximum Power (1 Hour)	117.69	87.76	2051		6.73	0.41

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
115.68	2202	6.90	0.42	N/A	0.47
99.91	2239	6.21	0.44	N/A	0.38
76.07	2270	5.18	0.48	N/A	0.30
51.36	2301	4.12	0.56	N/A	0.21
25.94	2329	2.94	0.80	N/A	0.09
1.06	2353	2.16	14.33	N/A	0.10

Unballasted Front Drive Engaged 2050 Engine RPM

Click column headers to sort

Gear	Power	kW	Pull (lbs)	Pull (kN)	Speed	RPM	Slip	Barometer Inch Hg	Barometer Kpa	Def Consumption Kg Kw H	Def Consumption Lb Hp Hr	Fuel Consumption Kg Kw H	Fuel Consumption Lb Hp Hr	Fuel Efficiency Hp Hr Gal	Fuel Efficiency Kw H L	Speed Km H	Temp F Air Dry Bulb	Temp F Cooling Med
7th (L4T) Gear	86.55	64.54	8,796	39.13	3.69	2222	14.90	28.68	97.12	0.02	0.03	0.33	0.54	13.02	2.57	5.94	79	183
8th (L4R) Gear	94.73	70.64	7,883	35.06	4.51	2153	12.50	28.62	96.92	0.02	0.04	0.31	0.51	13.81	2.72	7.26	81	183
9th (H1T) Gear	94.73	70.64	7,662	34.08	4.64	2127	12.10	28.61	96.88	0.03	0.04	0.31	0.51	13.83	2.73	7.47	83	183
10th (H1R) Gear	99.36	74.09	6,585	29.29	5.66	2050	9.20	28.60	96.85	0.02	0.04	0.29	0.47	14.78	2.91	9.11	84	183
11th (H2T) Gear	100.21	74.72	5,092	22.65	7.38	2050	5.80	28.68	97.12	0.02	0.04	0.28	0.47	14.96	2.95	11.88	74	183
12th (H2R) Gear	99.37	74.10	4,056	18.04	9.19	2051	4.30	28.68	97.12	0.02	0.04	0.29	0.47	14.84	2.92	14.79	74	183

Unballasted Front Drive Engaged Fuel Consumption Characteristics

Click column headers to sort

Power	kW	Pull (lbs)	Pull (kN)	Speed	RPM	Slip	Barometer Inch Hg	Barometer Kpa	Condition	Def Consumption Kg Kw H	Def Consumption Lb Hp Hr	Fuel Consumption Kg Kw H	Fuel Consumption Lb Hp Hr	Fuel Efficiency Hp Hr Gal	Fuel Efficiency Kw H L	Speed Km H	Temp F Air Dry Bulb	Temp F Cooling Med
94.17	70.22	7,269	32.33	4.86	2200	11.00	28.62	96.92	Power at Rated Engine Speed—9th (H1T) Gear	0.03	0.04	0.31	0.51	13.73	2.70	7.82	82	183
76.24	56.85	5,483	24.39	5.21	2253	6.70	28.62	96.92	75% of Pull at Rated Engine Speed—9th (H1T) Gear	0.02	0.04	0.32	0.53	13.28	2.62	8.38	87	183
53.41	39.82	3,681	16.37	5.44	2288	4.10	28.64	96.99	50% of Pull at Rated Engine Speed—9th (H1T) Gear	0.03	0.04	0.36	0.60	11.72	2.31	8.75	88	184
76.14	56.78	5,477	24.36	5.22	1461	6.60	28.63	96.95	75% of Pull at Reduced Engine Speed—11th (H2T) Gear	0.03	0.04	0.27	0.44	15.90	3.13	8.39	90	182
53.20	39.67	3,713	16.52	5.37	1465	4.10	28.61	96.88	50% of Pull at Reduced Engine Speed—11th (H2T) Gear	0.03	0.05	0.28	0.46	15.23	3.00	8.64	89	181

Unballasted Front Drive Engaged Maximum Power In Selected Gears

Click column headers to sort

Gear	Power	kW	Pull (lbs)	Pull (kN)	Speed	RPM	Slip	Barometer Inch Hg	Barometer Kpa	Def Consumption Kg Kw H	Def Consumption Lb Hp Hr	Fuel Consumption Kg Kw H	Fuel Consumption Lb Hp Hr	Fuel Efficiency Hp Hr Gal	Fuel Efficiency Kw H L	Speed Km H	Temp F Air Dry Bulb	Temp F Cooling Med
7th (L4T) Gear	86.43	64.45	8,790	39.10	3.69	2221	14.90	28.67	97.09	0.02	0.04	0.33	0.54	13.05	2.57	5.94	79	183
8th (L4R) Gear	94.30	70.32	7,599	33.80	4.66	2200	11.60	28.61	96.88	0.03	0.05	0.31	0.51	13.77	2.71	7.49	80	184
9th (H1T) Gear	94.17	70.22	7,269	32.33	4.86	2200	11.00	28.62	96.92	0.03	0.04	0.31	0.51	13.73	2.70	7.82	82	183
10th (H1R) Gear	99.09	73.89	6,049	26.91	6.15	2200	8.30	28.61	96.88	0.02	0.04	0.30	0.49	14.45	2.85	9.89	84	184
11th (H2T) Gear	98.08	73.14	4,611	20.51	7.98	2201	5.10	28.69	97.16	0.02	0.04	0.30	0.49	14.41	2.84	12.84	74	184
12th (H2R) Gear	99.82	74.43	3,788	16.85	9.88	2199	4.20	28.68	97.12	0.02	0.04	0.29	0.48	14.63	2.88	15.90	74	184

Category: II Quick Attach: None

Single Outlet Set

Sustained Pressure	2,042 psi
Flow Rate (min press)	N/A gpm
Max Power	23.60 hp

Hitch Dimensions (No Load)

Dimension	Inches	mm

Engine

Make	F.P.T NEF Diesel
Type	Four cylinder vertical with turbocharger, air to air intercooler and D.E.F. (diesel exhaust fluid) exhaust treatment
Displacement	274 cu in (4485 ml)
Compression Ratio	17.0 to 1
Rated Engine Speed	2200 rpm
Air Cleaner	two paper elements
Exhaust	DOC (diesel oxidation catalyst) and SCR (selective catalyst reduction) integrated within a vertical muffler
Crankshaft	lengthwise

Chassis

Type	front wheel assist
Steering	hydrostatic
Transmission	selective gear fixed ratio with partial (2) range operator controlled powershift
Speeds	16 forward (18.98 mph max)
Wheelbase	103.50 in (2630 mm)
Brakes	single wet disc operated by two foot pedals which can be locked together
Hydraulic Control	direct engine drive
Unladen Tractor Mass	10,665 lbs ( 4,838 kg )

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution

Sound Levels

Bystander	86.60 dB(A)
At No Load In 8th Gear Disengaged	81.10 dB(A)
At No Load In 8th Gear Engaged	81.40 dB(A)

Tires & Tracks

Rear Tires	18.4-38
Front Tires	14.9-28
Height of Drawbar	23.00 in (585 mm)

Static Weight

Rear	6,500 lbs
Front	4,340 lbs
Total	10,840 lbs
