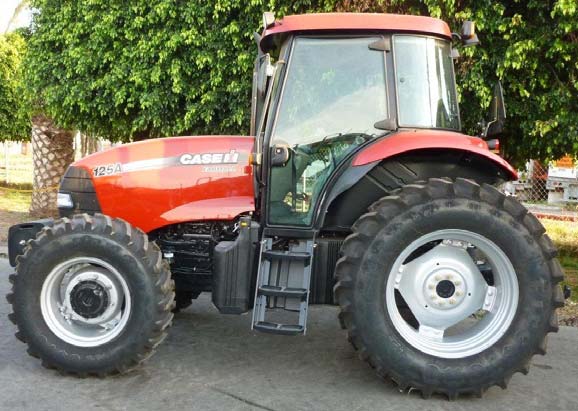

CaseIH Farmall 125A Specs ( 2012-2014 )

Name: CaseIH Farmall 125A
Brand: CaseIH

Overview

The CaseIH Farmall 125A is a utility tractor produced from 2012 to 2014, powered by an FPT 6.7L 6-cylinder turbocharged diesel engine with a 125 hp gross rating. The model features 2WD or 4WD configurations with either ROPS or cab options, resulting in weights between 9,061 and 10,406 pounds. It is equipped with an open center hydraulic system and a Category II rear hitch with a 7,200-pound lift capacity.

Ideal Applications

Verified Performance Testing: Nebraska Tractor Test data for this model recorded a maximum tested PTO output of 108.95 hp and a maximum drawbar pull of 8,576 lbs.

Hydraulic and Lift Specifications: The hydraulic system provides a 22 gpm pump flow and 9 gpm steering flow for a 31 gpm total, supporting a rear lift capacity of 7,200 lbs at 24 inches.

Transmission and Weight Configurations: Drivetrain options include 8-speed synchronized or power shuttle and 16-speed power shuttle transmissions, with 4WD cab models reaching a weight of 10,406 lbs.

Production

Description	Utility tractor
Manufacturer	CaseIH

Engine

Engine type	FPT 6.7L 6-cyl diesel
Bore/Stroke	4.094x5.197 inches (104 x 132 mm)
Compression	17.5:1
Description	FPT / turbocharged diesel / 6-cylinder 12-valve / liquid-cooled
Displacement	411 ci (6.7 L)
Emissions	Tier III
Fuel system	mechanical injection
Oil capacity	14.8 qts (14.0 L)
Power (gross)	125 hp (93.2 kW)
Rated RPM	2200
Starter	electric
Starter volts	12
Drawbar (tested)	94.27 hp (70.3 kW)
Engine (gross)	125 hp (93.2 kW)
PTO (claimed)	105 hp (78.3 kW)
PTO (tested)	108.95 hp (81.2 kW)

Transmission

Description	Adds under-drive to power shuttle transmission.
Gears	8 forward and reverse / 8 forward and reverse / 16 forward and 8 reverse
Transmission	Hi-Lo
Type	power shuttle / synchronized shuttle / power shuttle
Transmission type	8-speed power shuttle / 8-speed synchronized shuttle / 16-speed power shuttle
Transmission type	8-speed power shuttle / 8-speed synchronized shuttle / 16-speed power shuttle

Mechanical

Cab	Two-post foldable ROPS. Cab optional with air-conditioning.
Description	Power steering / Wet disc brakes
Drive type	Two- or four-wheel drive

Capacity

Fuel	62 gal (234.7 L)
Hydraulic system	16.4 gal (62.1 L)

Hydraulics

Capacity	16.4 gal (62.1 L)
Pump flow	22 gpm (83.3 lpm)
Steering flow	9 gpm (34.1 lpm)
Total flow	31 gpm (117.3 lpm)
Type	open center
Valves	2 to 4

Hitch

Rear lift (at 24"/610mm)	7200 lbs (3265 kg)
Rear Type	II

PTO

Rear PTO	independent
Rear PTO Type	540/1000

Electrical

Battery CCA	950
Battery volts	12
Charging amps	120
Charging system	alternator
Ground	negative

Dimensions & Tires

2WD Wheelbase	105 inches (266 cm)
4WD Wheelbase	104 inches (264 cm)
Bar rear axle	3.1 by 98 inches (78 by 2489 mm)
Description	Flange rear axle
2WD Wheelbase	105 inches (266 cm)
4WD Wheelbase	104 inches (264 cm)
Weight	9061 to 10406 pounds

CaseIH Farmall 125A Weight

2WD Cab	9766 lbs (4429 kg)
2WD ROPS	9061 lbs (4110 kg)
4WD Cab	10406 lbs (4720 kg)
4WD ROPS	9700 lbs (4399 kg)

CaseIH Farmall 125A attachments

Description	front-end loader

OCED Tractor Test 2051A

Description	Diesel 8-speed 4WDNovember 29 - December 6, 2012Link: OCED Tractor Test 2051A file / PTO performance / Drawbar performance
Fuel use	6.6 gal/hour (25.0 l/hour) / 7.4 gal/hour (28.0 l/hour) / 7.1 gal/hour (26.9 l/hour) / 7.5 gal/hour (28.4 l/hour)
Max power	108.95 hp (81.2 kW) / 94.27 hp (70.3 kW)
Max pull	8553 lbs (3879 kg)
Power at rated engine speed	108.53 hp (80.9 kW)
Power at rated PTO speed	107.15 hp (79.9 kW)

References

Description	Farmall 100A Series Tractors published in 2012, by CaseIH / Farmall 100A Series Tractors published in 2013, by CaseIH

Speeds

Description	With 18.4-34 rear tires. Reverse speeds are 3% faster than forward speeds.

Nebraska Tractor Test Results

Test #2051A

Download PDF

Test Date: November 29 - December 6, 2012

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Max Power (1 Hour)

108.95 hp

@ 1760 rpm

Rated Engine Speed

108.53 hp

N/A lb/hp·hr

Standard PTO Speed

107.15 hp

@ N/A rpm PTO

Torque Statistics

Maximum Torque	431 lb-ft (585 Nm)
Torque Rise	66.3%
At Engine RPM	1000 rpm

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM	PTO RPM
Rated Engine Speed	108.53	80.93	2200	1074
Maximum Power (1 Hour)	108.95	81.24	1760

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
108.53	2200	7.45	0.48	14.58	N/A
98.00	2337	7.07	0.51	13.86	N/A
73.80	2345	5.96	0.57	12.38	N/A
49.00	2346	4.77	0.68	10.27	N/A
25.00	2362	3.58	1.00	6.99	N/A
1.10	2433	2.56	16.28	0.43	N/A

Unballasted Front Drive Engaged 1760 RPM

Click column headers to sort

Gear	Power	kW	Pull (lbs)	Pull (kN)	Speed	Slip	hp·hr/gal	Air °F	Air °C	Cool °F	Cool °C	Barometer Inch Hg	Barometer Kpa	Engine Speed RPM	Fuel Kg Kw Hr	Fuel Lb Hp Hr	Kw H L	Speed Km H
3rd (L3)	73.64	54.91	8,576	38.15	3.22	14.90	10.72	47	8	181	83	28.79	97.49	2357	0.40	0.65	2.11	5.18
4th (L4)	90.00	67.11	7,852	34.93	4.30	12.30	11.95	47	8	182	83	28.79	97.49	2201	0.36	0.59	2.35	6.92
5th (H1)	92.27	68.80	7,179	31.93	4.82	10.50	13.44	44	7	179	82	28.83	97.63	1900	0.32	0.52	2.65	7.76
6th (H2)	95.76	71.41	4,990	22.20	7.20	6.40	14.55	48	9	179	82	28.81	97.56	1761	0.29	0.48	2.87	11.59

Unballasted Front Drive Engaged Fuel Consumption Characteristics

Click column headers to sort

Power	kW	Pull (lbs)	Pull (kN)	Speed	Slip	hp·hr/gal	Air °F	Air °C	Cool °F	Cool °C	Barometer Inch Hg	Barometer Kpa	Condition	Engine Speed RPM	Fuel Kg Kw Hr	Fuel Lb Hp Hr	Kw H L	Speed Km H
94.27	70.30	6,192	27.54	5.71	8.40	12.65	44	7	180	82	28.83	97.63	Maximum Power - 5th (H1) Gear	2200	0.34	0.55	2.49	9.19
76.57	57.10	4,596	20.44	6.25	6.10	11.59	50	10	183	84	28.76	97.39	75% of Pull at Maximum Power - 5th (H1) Gear	2346	0.37	0.61	2.28	10.06
52.70	39.29	3,088	13.73	6.40	4.20	9.41	50	10	181	83	28.76	97.39	50% of Pull at Maximum Power - 5th (H1) Gear	2359	0.45	0.75	1.85	10.30
76.44	57.00	4,603	20.47	6.23	6.00	15.28	49	9	178	81	28.74	97.33	75% of Pull at Reduced Engine Speed - 6th (H2) Gear	1520	0.28	0.46	3.01	10.02
52.72	39.32	3,055	13.59	6.47	4.10	13.84	50	10	178	81	28.74	97.33	50% of Pull at Reduced Engine Speed - 6th (H2) Gear	1549	0.31	0.51	2.73	10.41

Unballasted Front Drive Engaged Maximum Power In Selected Gears

Click column headers to sort

Gear	Power	kW	Pull (lbs)	Pull (kN)	Speed	Slip	hp·hr/gal	Air °F	Air °C	Cool °F	Cool °C	Barometer Inch Hg	Barometer Kpa	Engine Speed RPM	Fuel Kg Kw Hr	Fuel Lb Hp Hr	Kw H L	Speed Km H
3rd (L3)	73.62	54.89	8,553	38.05	3.23	14.80	10.69	48	9	182	83	28.78	97.46	2358	0.40	0.66	2.11	5.20
4th (L4)	89.61	66.82	7,794	34.67	4.32	12.20	11.92	48	9	181	83	28.79	97.49	2200	0.36	0.59	2.35	6.94
5th (H1)	94.27	70.30	6,192	27.54	5.71	8.40	12.65	44	7	180	82	28.83	97.63	2200	0.34	0.55	2.49	9.19
6th (H2)	94.94	70.79	3,899	17.34	9.13	4.90	12.72	46	8	181	83	28.81	97.56	2201	0.34	0.55	2.50	14.69

Engine

Make	F.P.T NEF series Diesel
Type	six cylinder vertical with turbocharger and air to air intercooler
Displacement	410 cu in (6728 ml)
Compression Ratio	17.5 to 1
Rated Engine Speed	2200 rpm
Air Cleaner	two paper elements
Crankshaft	lengthwise

Chassis

Type	front wheel assist
Steering	hydrostatic
Transmission	selective gear fixed ratio
Speeds	8 forward (17.82 mph max)
Wheelbase	104.00 in (2642 mm)
Front Tread Width	64.0 to 80.0 in
Rear Tread Width	64.0 to 80.0 in
Brakes	single wet disc operated by two foot pedals which can be locked together
Hydraulic Control	direct engine drive
Unladen Tractor Mass	4,815 kg

Consumables

Fuel	No. 2 Diesel
DEF Fluid	N/A

Sound Levels

Bystander	87.40 dB(A)
At No Load 4th Gear Disengaged	79.50 dB(A)
At No Load 4th Gear Engaged	79.50 dB(A)

Tires & Tracks

Rear Tires	Two 18.4-34;8;16(110) [No, size, ply & psi(kPa)]
Front Tires	Two 14.9-24;8;16(110) [No, size, ply & psi(kPa)]
Height of Drawbar	23.50 in (595 mm)

Static Weight

Rear	6,240 lbs
Front	4,550 lbs
Total	10,790 lbs
