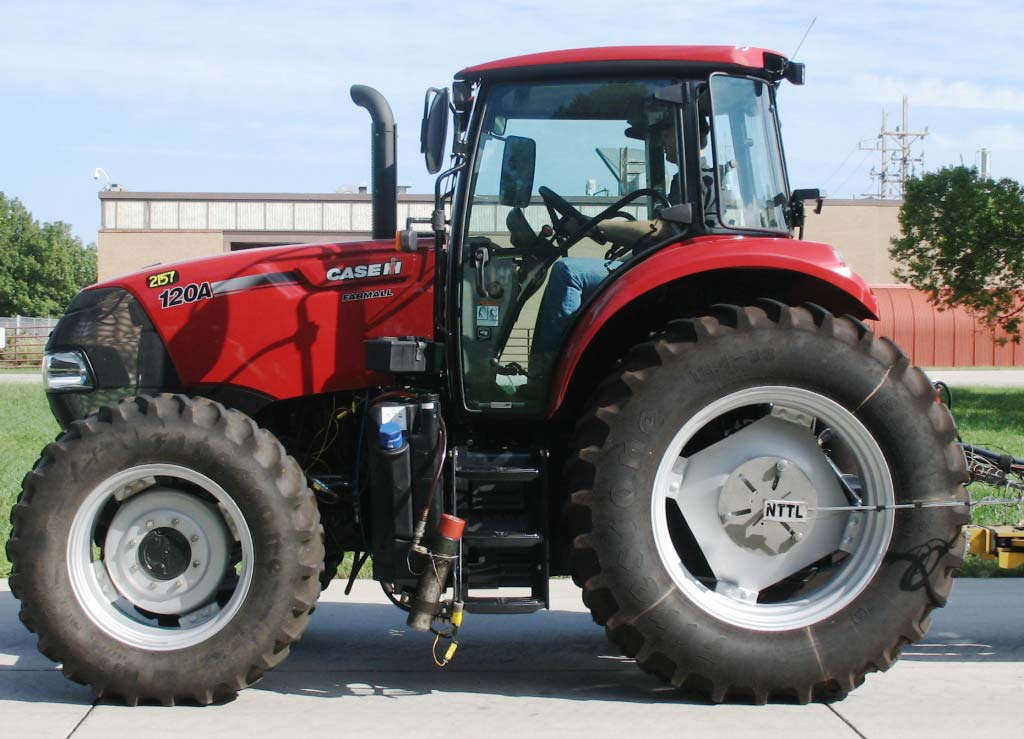

CaseIH Farmall 120A Specs ( 2012-2025 )

Name: CaseIH Farmall 120A
Brand: CaseIH

Overview

The CaseIH Farmall 120A is a utility tractor produced between 2012 and 2025, powered by an FPT 4.5L 4-cylinder turbocharged diesel engine. It features a gross power rating of 118 hp and was offered in both 2WD and 4WD configurations with options for a foldable ROPS or a climate-controlled cab.

Ideal Applications

Tested Drawbar and Pull Performance: In Nebraska Tractor Test Data, this model achieved a maximum drawbar power of 92.21 hp and a maximum pull of 8,821 lbs.

Hydraulic System and Hitch Capacity: The tractor is equipped with an open center hydraulic system providing a total flow of 31 gpm and a rear Type II hitch with a lift capacity of 7,200 lbs at 24 inches.

Transmission and PTO Specifications: Available transmission options include 8-speed and 16-speed shuttle systems, supporting an independent rear PTO rated at 540/1000 RPM that tested at 104.48 hp.

Production

Description	Utility tractor
Manufacturer	CaseIH

Engine

Engine type	FPT 4.5L 4-cyl diesel
Bore/Stroke	4.094x5.197 inches (104 x 132 mm)
Description	FPT / turbocharged diesel / 4-cylinder 8-valve / liquid-cooled
Displacement	273.7 ci (4.5 L)
Emissions	Tier III
Fuel system	mechanical injection
Oil capacity	11.6 qts (11.0 L)
Power (gross)	118 hp (88.0 kW)
Starter	electric
Starter volts	12
Drawbar (tested)	86.68 hp (64.6 kW)
Engine (gross)	118 hp (88.0 kW)
PTO (claimed)	96 hp (71.6 kW)
PTO (tested)	104.48 hp (77.9 kW)

Transmission

Description	Adds under-drive to power shuttle transmission.
Gears	8 forward and reverse / 8 forward and reverse / 16 forward and 8 reverse
Transmission	Hi-Lo
Type	power shuttle / synchronized shuttle / power shuttle
Transmission type	8-speed power shuttle / 8-speed synchronized shuttle / 16-speed power shuttle
Transmission type	8-speed power shuttle / 8-speed synchronized shuttle / 16-speed power shuttle

Mechanical

Cab	Two-post foldable ROPS. Cab optional with air-conditioning.
Description	Power steering / Wet disc brakes
Drive type	Two- or four-wheel drive

Capacity

Fuel	40 gal (151.4 L)
Hydraulic system	16.4 gal (62.1 L)

Hydraulics

Capacity	16.4 gal (62.1 L)
Pump flow	22 gpm (83.3 lpm)
Steering flow	9 gpm (34.1 lpm)
Total flow	31 gpm (117.3 lpm)
Type	open center
Valves	2 to 4

Hitch

Rear lift (at 24"/610mm)	7200 lbs (3265 kg)
Rear Type	II

PTO

Rear PTO	independent
Rear PTO Type	540/1000

Electrical

Battery CCA	950
Battery volts	12
Charging amps	120
Charging system	alternator
Ground	negative

Dimensions & Tires

2WD Wheelbase	101 inches (256 cm)
4WD Wheelbase	99 inches (251 cm)
Bar rear axle	3.1 by 98 inches (78 by 2489 mm)
Description	Flange rear axle
2WD Wheelbase	101 inches (256 cm)
4WD Wheelbase	99 inches (251 cm)
Weight	8091 to 9524 pounds

CaseIH Farmall 120A Weight

2WD Cab	8885 lbs (4030 kg)
2WD ROPS	8091 lbs (3670 kg)
4WD Cab	9524 lbs (4320 kg)
4WD ROPS	8818 lbs (3999 kg)

CaseIH Farmall 120A attachments

Description	front-end loader

OCED Tractor Test 2052A

Description	Diesel 8-speed 4WDDecember 3 - 6, 2012Link: OCED Tractor Test 2052A file / PTO performance / Drawbar performance
Fuel use	6.3 gal/hour (23.8 l/hour) / 7.2 gal/hour (27.3 l/hour) / 6.9 gal/hour (26.1 l/hour) / 7.2 gal/hour (27.3 l/hour)
Max power	104.48 hp (77.9 kW) / 86.68 hp (64.6 kW)
Max pull	7698 lbs (3491 kg)
Power at rated engine speed	97.27 hp (72.5 kW)
Power at rated PTO speed	101.23 hp (75.5 kW)

References

Description	Farmall 100A Series Tractors published in 2012, by CaseIH / Farmall 100A Series Tractors published in 2013, by CaseIH

Speeds

Description	With 18.4-34 rear tires. Reverse speeds are 3% faster than forward speeds.

Nebraska Tractor Test Results

Test #2157

Download PDF

Test Date: September 7 - 9, 2016

Location: Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln Nebraska 68583-0832

This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.

PTO Drawbar Hydraulics Technical Sound Tires & Weight

Maximum Power & Fuel Consumption

Rated Engine Speed

102.55 hp

N/A lb/hp·hr

Standard PTO Speed

104.24 hp

@ 540 rpm PTO

Torque Statistics

Maximum Torque	N/A
Torque Rise	49.5%
At Engine RPM	1249 rpm

PTO Power Curve

Maximum Power & Fuel Consumption Details

Condition	HP	kW	RPM	PTO RPM
Rated Engine Speed	102.55	76.47	2201	628
Standard PTO Speed (1000 rpm)	104.24	77.74	1890	540

Varying Power & Fuel Consumption

Click column headers to sort

Power	RPM	gal/hr	lb/hp·hr	hp·hr/gal	DEF gal/hr
102.55	2201	6.40	0.44	16.02	0.40
88.78	2238	5.94	0.47	14.96	0.35
67.59	2268	4.86	0.50	13.91	0.27
45.61	2298	3.93	0.60	11.62	0.19
23.09	2324	3.19	0.97	7.24	0.13
0.91	2348	2.27	17.56	0.40	0.07

Fuel Consumption Characteristics

Click column headers to sort

Condition	Power	Pull (lbs)	Speed	RPM	Slip	DEF lb/hp	Air °F	Cool °F
Power at Rated Engine Speed—8th (L4R) Ge...	87.99	6,814	4.84	2200	7.70	0.04	72	183
75% of Pull at Rated Engine Speed—8th (L...	69.29	5,097	5.10	2249	5.00	0.05	81	183
50% of Pull at Rated Engine Speed—8th (L...	48.03	3,406	5.29	2283	2.90	0.05	82	183
75% of Pull at Reduced Engine Speed—10th...	69.62	5,132	5.09	1766	5.10	0.04	83	182
50% of Pull at Reduced Engine Speed—10th...	48.19	3,413	5.30	1798	2.90	0.04	82	181

Unballasted Front Drive Engaged 1850 Engine RPM

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	hp·hr/gal	lb/hp·hr	DEF lb/hp	inHg	Crank Shaft RPM	Temp Air F	Temp Cooling F
6th (L3R)	76.34	8,815	3.25	14.90	12.38	0.57	0.05	28.73	2219	76	183
7th (L4T)	83.41	8,542	3.67	13.10	13.07	0.54	0.04	28.71	2164	72	185
8th (L4R)	88.41	7,477	4.43	9.30	14.29	0.49	0.04	28.72	2050	73	183
9th (H1T)	87.78	7,299	4.51	8.80	14.29	0.49	0.04	28.71	2000	72	183
10th (H1R)	91.52	6,392	5.37	6.90	15.31	0.46	0.04	28.71	1900	71	183
11th (H2T)	91.10	5,107	6.69	5.20	15.49	0.45	0.04	28.70	1850	76	184
12th (H2R)	92.21	4,161	8.31	3.80	15.75	0.45	0.04	28.70	1850	78	183

Unballasted Front Drive Engaged Maximum Power In Selected Gears

Click column headers to sort

Gear	Power	Pull (lbs)	Speed	Slip	hp·hr/gal	lb/hp·hr	DEF lb/hp	inHg	Crank Shaft RPM	Temp Air F	Temp Cooling F
6th (L3R)	76.27	8,821	3.25	15.00	12.33	0.57	0.05	28.72	2219	76	183
7th (L4T)	83.49	8,301	3.77	12.00	13.04	0.54	0.05	28.72	2200	72	184
8th (L4R)	87.99	6,814	4.84	7.70	13.75	0.51	0.04	28.72	2200	72	183
9th (H1T)	87.45	6,481	5.06	7.10	13.64	0.51	0.04	28.71	2200	72	183
10th (H1R)	90.03	5,335	6.33	5.30	14.04	0.50	0.04	28.71	2200	72	183
11th (H2T)	89.22	4,151	8.06	3.80	14.00	0.50	0.05	28.71	2200	77	185

Category: II Quick Attach: None

Single Outlet Set

Sustained Pressure	2,472 psi
Delivery Pressure	1,943 psi
Flow Rate (min press)	18.30 gpm
Max Power	18.60 hp

Engine

Make	F.P.T NEF Diesel
Type	Four cylinder vertical with turbocharger, air to air intercooler and D.E.F. (diesel exhaust fluid) exhaust treatment
Displacement	274 cu in (4485 ml)
Compression Ratio	17.0 to 1
Rated Engine Speed	2200 rpm
Air Cleaner	two paper elements
Exhaust	DOC (diesel oxidation catalyst) and SCR (selective catalyst reduction) integrated within a vertical muffler
Crankshaft	lengthwise

Chassis

Type	front wheel assist
Steering	hydrostatic
Transmission	selective gear fixed ratio with partial (2) range operator controlled powershift
Speeds	16 forward (18.98 mph max)
Wheelbase	99.30 in (2521 mm)
Front Tread Width	60.8 to 88.1 in
Rear Tread Width	64.0 to 78.0 in
Brakes	single wet disc operated by two foot pedals which can be locked together
Hydraulic Control	direct engine drive
Unladen Tractor Mass	10,505 lbs ( 4,765 kg )

Consumables

Fuel	No. 2 Diesel
DEF Fluid	32% aqueous urea solution
Engine Oil	SAE 10W30

Sound Levels

Bystander	86.20 dB(A)
At No Load 8th 4lr Gear Fwd Disengaged	79.90 dB(A)
At No Load 8th 4lr Gear Fwd Engaged	79.80 dB(A)

Tires & Tracks

Rear Tires	Two 18.4-38; 8 ply; 16 psi (110 kPa)
Front Tires	Two 14.9-28; 6 ply; 16 psi (110 kPa)
Height of Drawbar	23.5 in (595 mm)

Static Weight

Rear	6,260 lbs
Front	4,420 lbs
Total	10,680 lbs
