Overview

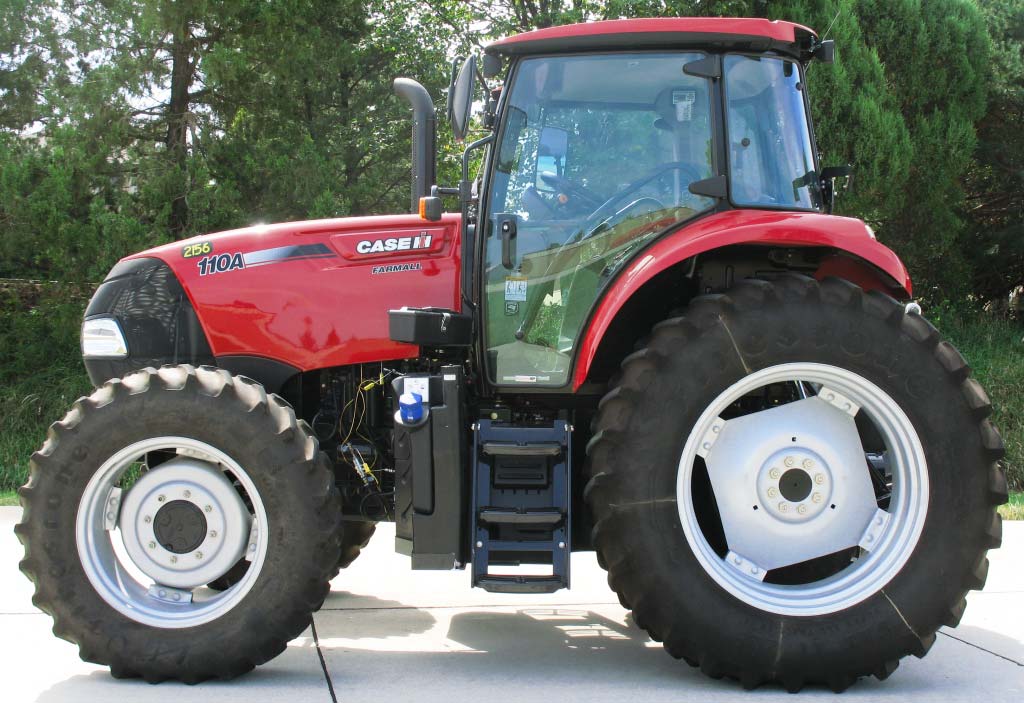

The CaseIH Farmall 110A is a utility tractor produced from 2012 to 2025, powered by a 110 hp FPT 4.5L 4-cylinder turbocharged diesel engine with mechanical injection. It is configured with an open-center hydraulic system providing a total flow of 31 gpm and a Category II rear hitch with a 7,200-lb lift capacity.
Ideal Applications
Tested Performance Data:
Nebraska Tractor Test data for this model records a maximum drawbar power of 81.53 hp and a maximum pull of 8,485 lbs.
Transmission and Drivetrain Options:
The tractor is available with 8-speed synchronized shuttle, 8-speed power shuttle, or 16-speed power shuttle transmissions and comes in both two-wheel and four-wheel drive configurations.
Chassis and Operational Weight:
Total operating weights for this model range from 8,003 lbs for the 2WD ROPS configuration to 9,348 lbs for the 4WD cab version.
Production
| Description | Utility tractor |
|---|---|
| Manufacturer | CaseIH |
Engine
| Engine type | FPT 4.5L 4-cyl diesel |
|---|---|
| Bore/Stroke | 4.094x5.197 inches (104 x 132 mm) |
| Compression | 17.5:1 |
| Description | FPT / turbocharged diesel / 4-cylinder 8-valve / liquid-cooled |
| Displacement | 273.7 ci (4.5 L) |
| Emissions | Tier III |
| Fuel system | mechanical injection |
| Oil capacity | 11.6 qts (11.0 L) |
| Power (gross) | 110 hp (82.0 kW) |
| Rated RPM | 2200 |
| Starter | electric |
| Starter volts | 12 |
| Drawbar (tested) | 81.30 hp (60.6 kW) |
| Engine (gross) | 110 hp (82.0 kW) |
| PTO (claimed) | 90 hp (67.1 kW) |
| PTO (tested) | 94.17 hp (70.2 kW) |
Transmission
| Description | Adds under-drive to power shuttle transmission. |
|---|---|
| Gears | 8 forward and reverse / 8 forward and reverse / 16 forward and 8 reverse |
| Transmission | Hi-Lo |
| Type | power shuttle / synchronized shuttle / power shuttle |
| Transmission type | 8-speed power shuttle / 8-speed synchronized shuttle / 16-speed power shuttle |
| Transmission type | 8-speed power shuttle / 8-speed synchronized shuttle / 16-speed power shuttle |
Mechanical
| Cab | Two-post foldable ROPS. Cab optional with air-conditioning. |
|---|---|
| Description | Power steering / Wet disc brakes |
| Drive type | Two- or four-wheel drive |
Capacity
| Fuel | 40 gal (151.4 L) |
|---|---|
| Hydraulic system | 16.4 gal (62.1 L) |
Hydraulics
| Capacity | 16.4 gal (62.1 L) |
|---|---|
| Pump flow | 22 gpm (83.3 lpm) |
| Steering flow | 9 gpm (34.1 lpm) |
| Total flow | 31 gpm (117.3 lpm) |
| Type | open center |
| Valves | 2 to 4 |
Hitch
| Rear lift (at 24"/610mm) | 7200 lbs (3265 kg) |
|---|---|
| Rear Type | II |
PTO
| Rear PTO | independent |
|---|---|
| Rear PTO Type | 540/1000 |
Electrical
| Battery CCA | 950 |
|---|---|
| Battery volts | 12 |
| Charging amps | 120 |
| Charging system | alternator |
| Ground | negative |
Dimensions & Tires
| 2WD Wheelbase | 101 inches (256 cm) |
|---|---|
| 4WD Wheelbase | 99 inches (251 cm) |
| Bar rear axle | 3.1 by 98 inches (78 by 2489 mm) |
| Description | Flange rear axle |
| 2WD Wheelbase | 101 inches (256 cm) |
| 4WD Wheelbase | 99 inches (251 cm) |
| Weight | 8003 to 9348 pounds |
CaseIH Farmall 110A Weight
| 2WD Cab | 8708 lbs (3949 kg) |
|---|---|
| 2WD ROPS | 8003 lbs (3630 kg) |
| 4WD Cab | 9348 lbs (4240 kg) |
| 4WD ROPS | 8642 lbs (3920 kg) |
CaseIH Farmall 110A attachments
| Description | front-end loader |
|---|
OCED Tractor Test 2053A
| Description | Diesel 8-speed 4WDDecember 4 - 6, 2012Link: OCED Tractor Test 2053A file / PTO performance / Drawbar performance |
|---|---|
| Fuel use | 5.9 gal/hour (22.3 l/hour) / 5.8 gal/hour (22.0 l/hour) / 6.3 gal/hour (23.8 l/hour) / 6.5 gal/hour (24.6 l/hour) |
| Max power | 94.17 hp (70.2 kW) / 81.30 hp (60.6 kW) |
| Max pull | 7624 lbs (3458 kg) |
| Power at rated engine speed | 82.05 hp (61.2 kW) |
| Power at rated PTO speed | 94.07 hp (70.1 kW) |
References
| Description | Farmall 100A Series Tractors published in 2012, by CaseIH / Farmall 100A Series Tractors published in 2013, by CaseIH |
|---|
Speeds
| Description | With 18.4-34 rear tires. Reverse speeds are 3% faster than forward speeds. |
|---|
Nebraska Tractor Test Results
Test #2156A
Test Date:
August 30 to September 7, 2016
Location:
Nebraska Tractor Test Laboratory, University of Nebraska, Lincoln Nebraska 68583-0832
This section is compiled from original Nebraska Tractor Test PDFs using AI-assisted extraction and human review. For full verification, download the source PDF above. Differences between reports, incomplete source data, and occasional extraction or data entry mistakes can occur.
Maximum Power & Fuel Consumption
Max Power (1 Hour)
94.93 hp
@ 1750 rpm
Rated Engine Speed
92.57 hp
N/A lb/hp·hr
Standard PTO Speed
94.56 hp
@ 539 rpm PTO
Torque Statistics
| Maximum Torque | 348 lb-ft (472 Nm) at 1249 rpm |
|---|---|
| Torque Rise | 57.7% |
PTO Power Curve
Maximum Power & Fuel Consumption Details
| Condition | HP | kW | RPM | PTO RPM | Fuel gal/hr | Fuel L/hr | DEF gal/hr | DEF L/hr |
|---|---|---|---|---|---|---|---|---|
| Rated Engine Speed | 92.57 | 69.03 | 2201 | 630 | 5.90 | 22.32 | 0.40 | 1.50 |
| Standard PTO Speed (1000 rpm) | 94.56 | 70.51 | 1890 | 539 | 5.42 | 20.50 | 0.37 | 1.38 |
| Maximum Power (1 Hour) | 94.93 | 70.79 | 1750 | 5.22 | 19.76 | 0.32 | 1.21 |
Varying Power & Fuel Consumption
Click column headers to sort
| Power | RPM | gal/hr | lb/hp·hr | hp·hr/gal | DEF gal/hr |
|---|---|---|---|---|---|
| 92.57 | 2201 | 5.90 | 0.45 | 15.70 | 0.40 |
| 79.84 | 2238 | 5.36 | 0.47 | 14.89 | 0.34 |
| 60.86 | 2267 | 4.57 | 0.53 | 13.33 | 0.27 |
| 41.15 | 2299 | 3.75 | 0.64 | 10.99 | 0.21 |
| 20.84 | 2320 | 3.05 | 1.03 | 6.38 | 0.12 |
| 1.69 | 2344 | 2.25 | 9.33 | 0.75 | 0.08 |
